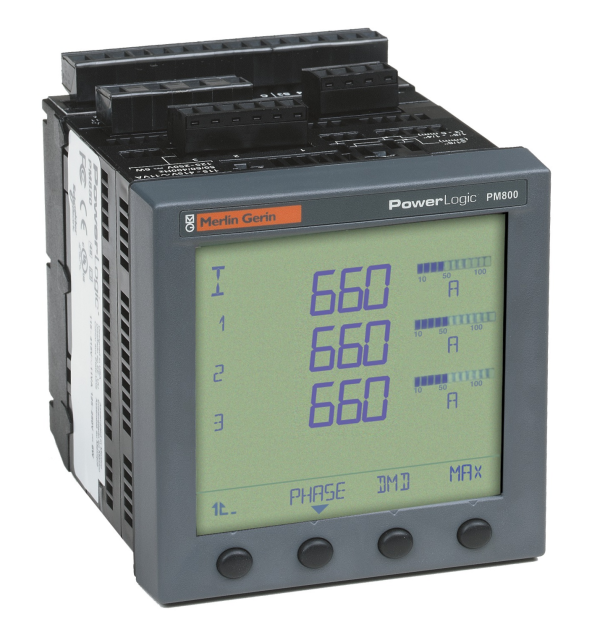

Support for PowerLogic PM800

PowerLogic PM800 meters are an industry standard for industrial power metering applications. They are applicable to a wide range of project sizes and provide sophisticated power quality analytics.

Easy to Install

When ordered with the Ethernet communications option, PM800 meters can be installed anywhere on the project LAN and the WattMetrics Agent will automatically discover them. No Agent configuration necessary. PM800 also come standard with a RS485 communications option, making a direct connection to a WattMetrics agent quick and easy.

Measure Production and Demand

When a PM800 is wired to measure building demand (or net demand of building and energy production system), the WattMetrics platform provides a detailed history of gross production, gross demand, net demand and net production.

Embeddable Data

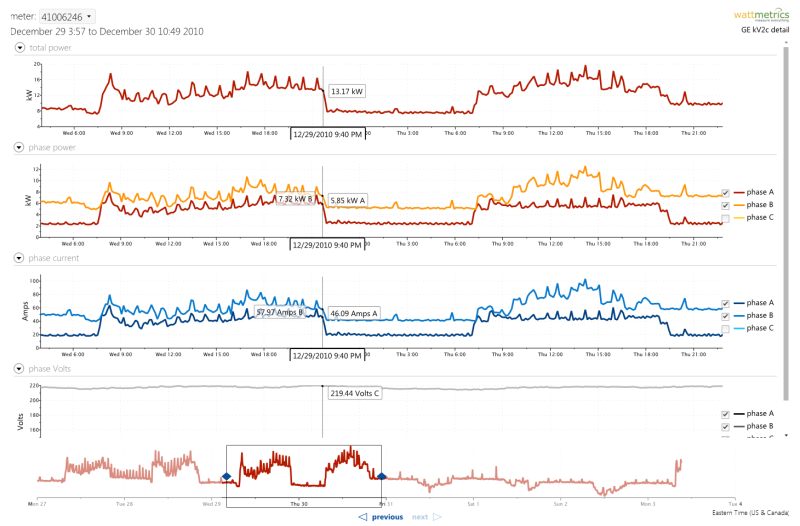

Interactive charts with live meter data are easily embeddable in any website.

Meter Specifications

Recorded Data Points

  • Lifetime kWh

  • Instantaneous kW (phase A, B and C)

  • Volts (phase A, B and C)

  • Amps (phase A, B and C)

More Resources

Installation Instructions

PowerLogic PM800 Brochure
